STG3684ADTR
STMicroelectronics

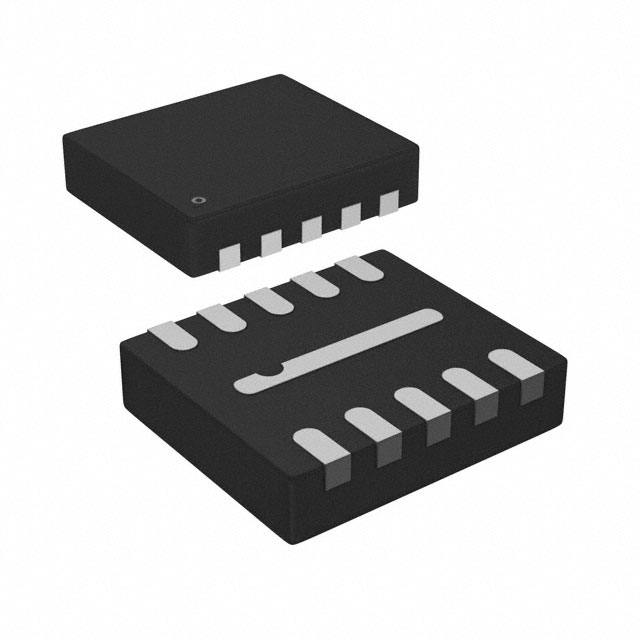

Images are for reference only.
See Product Specifications for product details.
Buy STG3684ADTR with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STG3684ADTR with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STG3684ADTR Datasheet| Part Number | STG3684ADTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC SWITCH DUAL SPDT 10UFDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STG3684ADTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Description | IC SWITCH DUAL SPDT 10UFDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84932 pcs |
| Datasheet | STG3684ADTR.pdf |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.3 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| Switch Circuit | SPDT |
| Supplier Device Package | 10-DFN (2.3x2.0) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFDFN Exposed Pad |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 500 mOhm |
| Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 2:1 500 mOhm 10-DFN (2.3x2.0) |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -72dB @ 100kHz |
| Charge Injection | 49pC |
| Channel-to-Channel Matching (ΔRon) | 100 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Base Part Number | STG3684 |
| -3db Bandwidth | 55MHz |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 84932 pcs of STMicroelectronicsSTG3684ADTR in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
