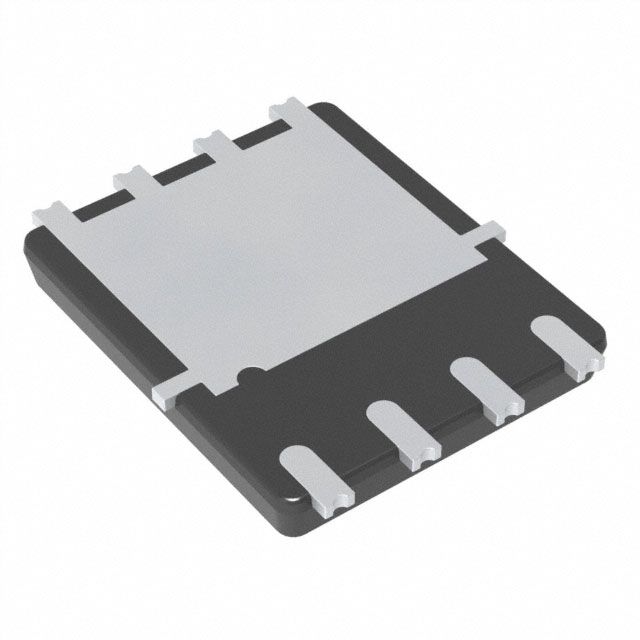

STLD125N4F6AG
STMicroelectronics
Images are for reference only.
See Product Specifications for product details.
Buy STLD125N4F6AG with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STLD125N4F6AG with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STLD125N4F6AG Datasheet| Part Number | STLD125N4F6AG |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 40V 120A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STLD125N4F6AG |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 40V 120A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86806 pcs |
| Datasheet | STLD125N4F6AG.pdf |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFlat™ (5x6) Dual Side |
| Series | STripFET™ F6 |
| Rds On (Max) @ Id, Vgs | 3 mOhm @ 75A, 10V |
| Power Dissipation (Max) | 130W (Tc) |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerWDFN |
| Other Names | 497-17147-1 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 5600pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 91nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 6.5V, 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 120A (Tc) 130W (Tc) Surface Mount PowerFlat™ (5x6) Dual Side |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 86806 pcs of STMicroelectronicsSTLD125N4F6AG in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
