STGP20M65DF2
STMicroelectronics

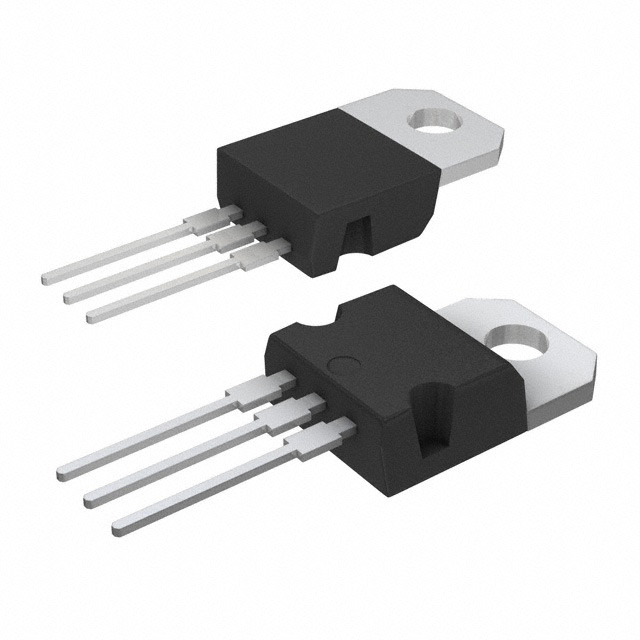

Images are for reference only.
See Product Specifications for product details.
Buy STGP20M65DF2 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STGP20M65DF2 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STGP20M65DF2 Datasheet| Part Number | STGP20M65DF2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IGBT TRENCH 650V 40A TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STGP20M65DF2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT TRENCH 650V 40A TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78555 pcs |
| Datasheet | STGP20M65DF2.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 20A |
| Test Condition | 400V, 20A, 12 Ohm, 15V |
| Td (on/off) @ 25°C | 26ns/108ns |
| Switching Energy | 140µJ (on), 560µJ (off) |
| Supplier Device Package | TO-220 |
| Series | M |
| Reverse Recovery Time (trr) | 166ns |
| Power - Max | 166W |
| Package / Case | TO-220-3 |
| Other Names | 497-17909 STGP20M65DF2-ND |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Trench Field Stop |
| Gate Charge | 63nC |
| Detailed Description | IGBT Trench Field Stop 650V 40A 166W Through Hole TO-220 |
| Current - Collector Pulsed (Icm) | 80A |
| Current - Collector (Ic) (Max) | 40A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 78555 pcs of STMicroelectronicsSTGP20M65DF2 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
