STG3856QTR
STMicroelectronics

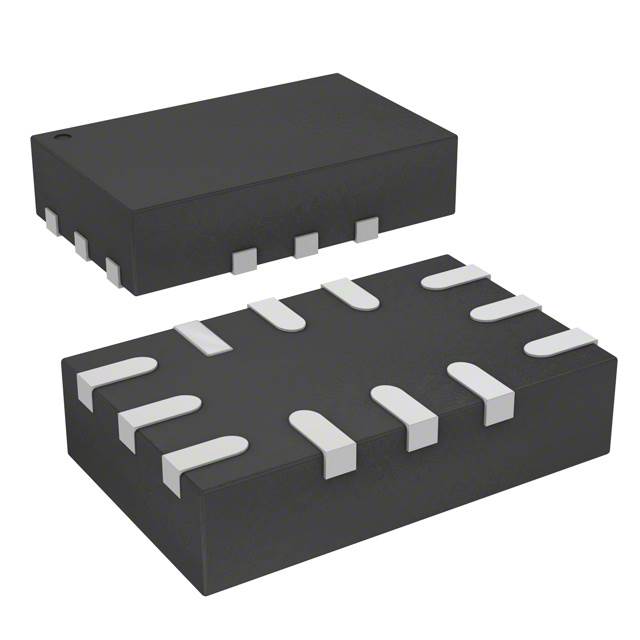

Images are for reference only.
See Product Specifications for product details.
Buy STG3856QTR with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STG3856QTR with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STG3856QTR Datasheet| Part Number | STG3856QTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC SWITCH DUAL SP3T 12QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STG3856QTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Description | IC SWITCH DUAL SP3T 12QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98616 pcs |
| Datasheet | STG3856QTR.pdf |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.3 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| Switch Circuit | SP3T |
| Supplier Device Package | 12-QFN (2.2x1.4) |
| Series | - |
| Packaging | Original-Reel® |
| Package / Case | 12-UFQFN |
| Other Names | 497-6174-6 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 1 Ohm |
| Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 3:1 1 Ohm 12-QFN (2.2x1.4) |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -84dB @ 100kHz |
| Charge Injection | 55pC |
| Channel-to-Channel Matching (ΔRon) | 10 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Base Part Number | STG3856 |
| -3db Bandwidth | 100MHz |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 98616 pcs of STMicroelectronicsSTG3856QTR in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
