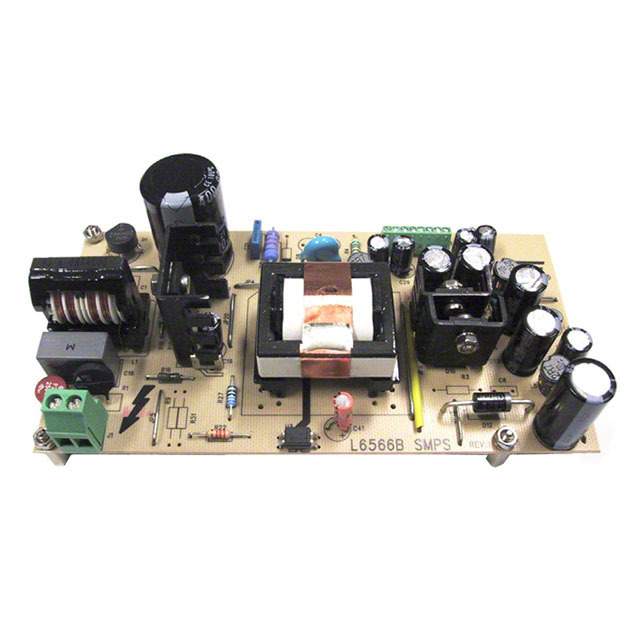

EVL6566B-40WSTB
STMicroelectronics
Images are for reference only.
See Product Specifications for product details.
Buy EVL6566B-40WSTB with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy EVL6566B-40WSTB with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload EVL6566B-40WSTB Datasheet| Part Number | EVL6566B-40WSTB |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD EVAL FOR L6566B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | EVL6566B-40WSTB |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | BOARD EVAL FOR L6566B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2727 pcs |
| Datasheet | EVL6566B-40WSTB.pdf |
| Voltage - Output | 5V, 12V, 1.8V, 3.3V |
| Voltage - Input | 90 ~ 264 VAC |
| Utilized IC / Part | L6566B |
| Supplied Contents | Board(s) |
| Series | - |
| Regulator Topology | Flyback |
| Power - Output | 40W |
| Outputs and Type | 4, Isolated |
| Other Names | 497-6450 EVL6566B40WSTB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | AC/DC, Primary Side |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 62kHz |
| Detailed Description | L6566B - AC/DC, Primary Side 4, Isolated Outputs Evaluation Board |
| Current - Output | 2.4A, 1.9A, 1.73A, 500mA |
| Board Type | Fully Populated |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 2727 pcs of STMicroelectronicsEVL6566B-40WSTB in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
