STG3P2M10N60B
STMicroelectronics

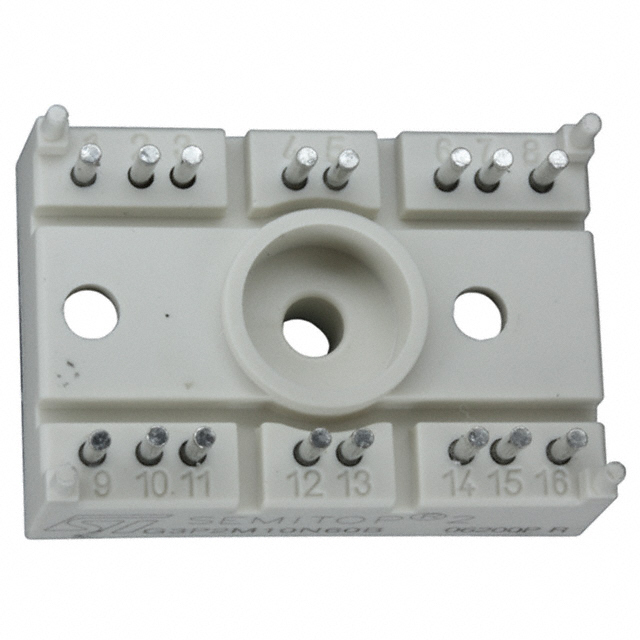

Images are for reference only.
See Product Specifications for product details.
Buy STG3P2M10N60B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STG3P2M10N60B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STG3P2M10N60B Datasheet| Part Number | STG3P2M10N60B |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IGBT N-CHAN 600V 19A SEMITOP2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STG3P2M10N60B |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - IGBTs - Modules |
| Description | IGBT N-CHAN 600V 19A SEMITOP2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4954 pcs |
| Datasheet | STG3P2M10N60B.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 7A |
| Supplier Device Package | SEMITOP®2 |
| Series | SEMITOP® |
| Power - Max | 56W |
| Package / Case | SEMITOP®2 |
| Other Names | 497-5216 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| NTC Thermistor | No |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 0.72nF @ 25V |
| Input | Single Phase Bridge Rectifier |
| IGBT Type | - |
| Detailed Description | IGBT Module Three Phase Inverter 600V 19A 56W Chassis Mount SEMITOP®2 |
| Current - Collector Cutoff (Max) | 10µA |
| Current - Collector (Ic) (Max) | 19A |
| Configuration | Three Phase Inverter |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 4954 pcs of STMicroelectronicsSTG3P2M10N60B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
