STL100N8F7
STMicroelectronics

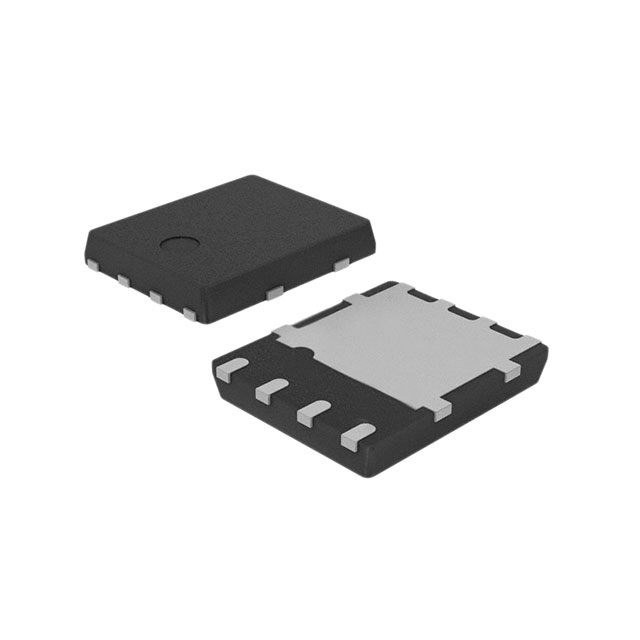

Images are for reference only.
See Product Specifications for product details.
Buy STL100N8F7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STL100N8F7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STL100N8F7 Datasheet| Part Number | STL100N8F7 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 80V 100A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STL100N8F7 |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 80V 100A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84851 pcs |
| Datasheet | STL100N8F7.pdf |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFlat™ (5x6) |
| Series | STripFET™ |
| Rds On (Max) @ Id, Vgs | 6.1 Ohm @ 10A, 10V |
| Power Dissipation (Max) | 4.8W (Ta), 120W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Other Names | 497-16502-2 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3435pF @ 40V |
| Gate Charge (Qg) (Max) @ Vgs | 46.8nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 80V |
| Detailed Description | N-Channel 80V 100A (Tc) 4.8W (Ta), 120W (Tc) Surface Mount PowerFlat™ (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 84851 pcs of STMicroelectronicsSTL100N8F7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
