STL7DN6LF3
STMicroelectronics

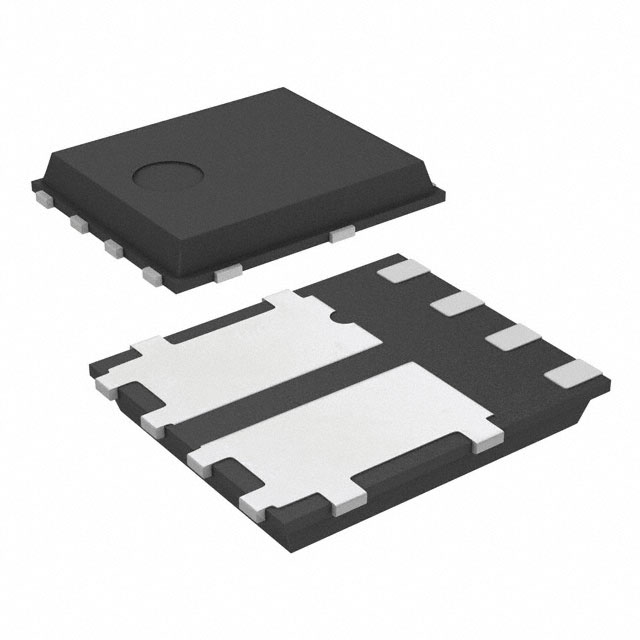

Images are for reference only.
See Product Specifications for product details.
Buy STL7DN6LF3 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STL7DN6LF3 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STL7DN6LF3 Datasheet| Part Number | STL7DN6LF3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET 2N-CH 60V 20A 5X6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STL7DN6LF3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Description | MOSFET 2N-CH 60V 20A 5X6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74052 pcs |
| Datasheet | STL7DN6LF3.pdf |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | PowerFlat™ (5x6) |
| Series | STripFET™ III |
| Rds On (Max) @ Id, Vgs | 43 mOhm @ 3A, 10V |
| Power - Max | 52W |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerVDFN |
| Other Names | 497-13167-1 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 432pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 8.8nC @ 10V |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 60V 20A 52W Surface Mount PowerFlat™ (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 20A |
| Base Part Number | ST*7DN |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 74052 pcs of STMicroelectronicsSTL7DN6LF3 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
