EMIF02-AV01F3
STMicroelectronics

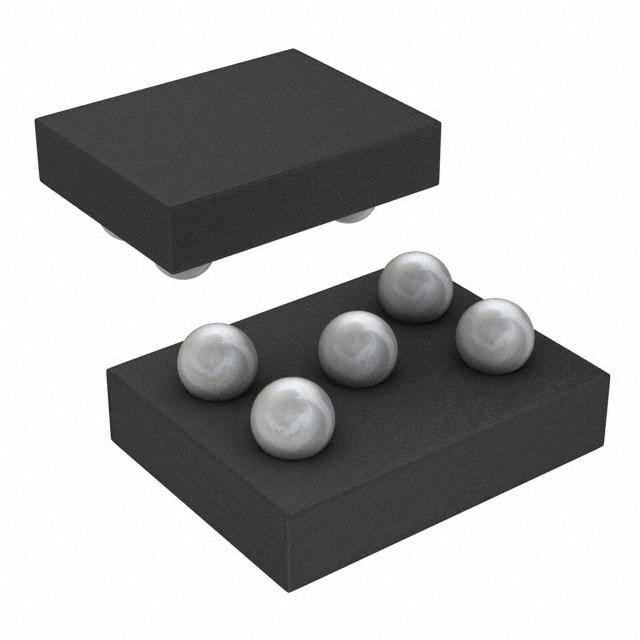

Images are for reference only.
See Product Specifications for product details.
Buy EMIF02-AV01F3 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy EMIF02-AV01F3 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload EMIF02-AV01F3 Datasheet| Part Number | EMIF02-AV01F3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | FILTER RC(PI) 15 OHM/3200PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | EMIF02-AV01F3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | EMI/RFI Filters (LC, RC Networks) |
| Description | FILTER RC(PI) 15 OHM/3200PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 173303 pcs |
| Datasheet | EMIF02-AV01F3.pdf |
| Voltage - Rated | - |
| Values | R = 15 Ohms, C = 3200pF |
| Type | Low Pass |
| Technology | RC (Pi) |
| Size / Dimension | 0.046" L x 0.030" W (1.17mm x 0.77mm) |
| Series | IPAD™ |
| Resistance - Channel (Ohms) | 15 |
| Packaging | Cut Tape (CT) |
| Package / Case | 5-WFBGA, FCBGA |
| Other Names | 497-14158-1 |
| Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.026" (0.65mm) |
| Filter Order | 2nd |
| ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 15 Ohms, C = 3200pF 5-WFBGA, FCBGA |
| Center / Cutoff Frequency | - |
| Attenuation Value | - |
| Applications | Data Lines for Mobile Devices |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 173303 pcs of STMicroelectronicsEMIF02-AV01F3 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
