EVL6566A-75WADP
STMicroelectronics

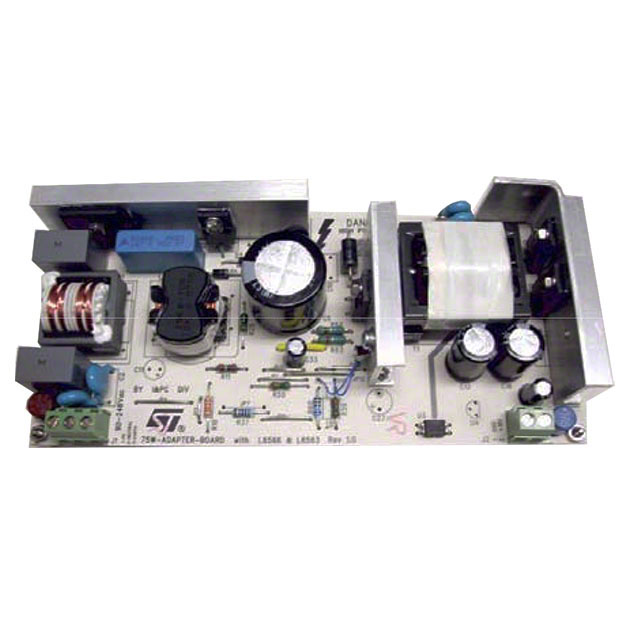

Images are for reference only.
See Product Specifications for product details.
Buy EVL6566A-75WADP with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy EVL6566A-75WADP with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload EVL6566A-75WADP Datasheet| Part Number | EVL6566A-75WADP |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD EVAL FOR L6566A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | EVL6566A-75WADP |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | BOARD EVAL FOR L6566A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 878 pcs |
| Datasheet | EVL6566A-75WADP.pdf |
| Voltage - Output | 19V |
| Voltage - Input | 90 ~ 264 VAC |
| Utilized IC / Part | L6563, L6566A, TSM1014 |
| Supplied Contents | Board(s) |
| Series | - |
| Regulator Topology | - |
| Power - Output | 75W |
| Outputs and Type | 1, Isolated |
| Other Names | 497-6449 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | AC/DC, Primary and Secondary Side with PFC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 65kHz |
| Detailed Description | L6563, L6566A, TSM1014 - AC/DC, Primary and Secondary Side with PFC 1, Isolated Outputs Evaluation Board |
| Current - Output | 4A |
| Board Type | Fully Populated |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 878 pcs of STMicroelectronicsEVL6566A-75WADP in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
