VIPER38HE
STMicroelectronics

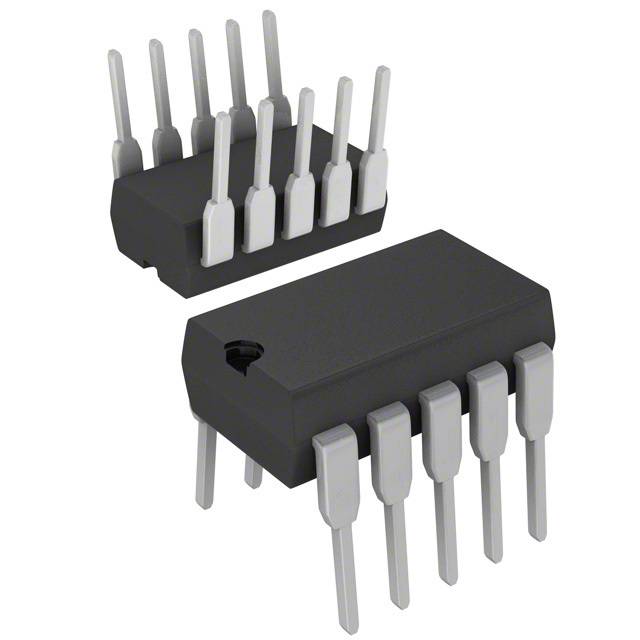

Images are for reference only.
See Product Specifications for product details.
Buy VIPER38HE with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy VIPER38HE with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload VIPER38HE Datasheet| Part Number | VIPER38HE |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC OFF-LINE SWITCH PWM 10SDIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | VIPER38HE |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC OFF-LINE SWITCH PWM 10SDIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111937 pcs |
| Datasheet | VIPER38HE.pdf |
| Voltage - Supply (Vcc/Vdd) | 8.5 V ~ 23.5 V |
| Voltage - Start Up | 14V |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Supplier Device Package | 10-SDIP |
| Series | VIPer™ plus |
| Power (Watts) | 20W |
| Packaging | Tube |
| Package / Case | 10-SDIP (0.300", 7.62mm) |
| Output Isolation | Isolated |
| Other Names | 497-14634 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes |
| Frequency - Switching | 115kHz |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Duty Cycle | 80% |
| Detailed Description | Converter Offline Flyback Topology 115kHz 10-SDIP |
| Control Features | - |
| Base Part Number | VIPER38 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 111937 pcs of STMicroelectronicsVIPER38HE in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
