STGFW30H65FB
STMicroelectronics

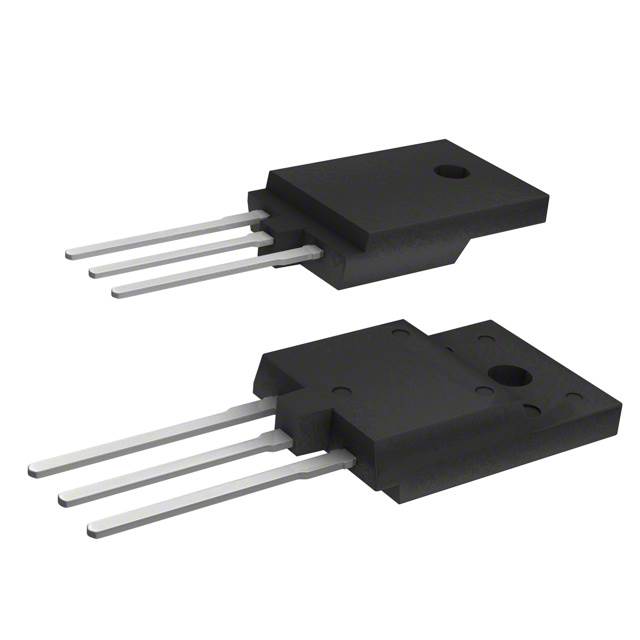

Images are for reference only.
See Product Specifications for product details.
Buy STGFW30H65FB with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STGFW30H65FB with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STGFW30H65FB Datasheet| Part Number | STGFW30H65FB |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IGBT 650V 60A 58W TO3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STGFW30H65FB |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 650V 60A 58W TO3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56227 pcs |
| Datasheet | STGFW30H65FB.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Test Condition | 400V, 30A, 10 Ohm, 15V |
| Td (on/off) @ 25°C | 37ns/146ns |
| Switching Energy | 151µJ (on), 293µJ (off) |
| Supplier Device Package | TO-3PF-3 |
| Series | - |
| Power - Max | 58W |
| Packaging | Tube |
| Package / Case | TO-3PFM, SC-93-3 |
| Other Names | 497-15123-5 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Trench Field Stop |
| Gate Charge | 149nC |
| Detailed Description | IGBT Trench Field Stop 650V 60A 58W Through Hole TO-3PF-3 |
| Current - Collector Pulsed (Icm) | 120A |
| Current - Collector (Ic) (Max) | 60A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 56227 pcs of STMicroelectronicsSTGFW30H65FB in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
